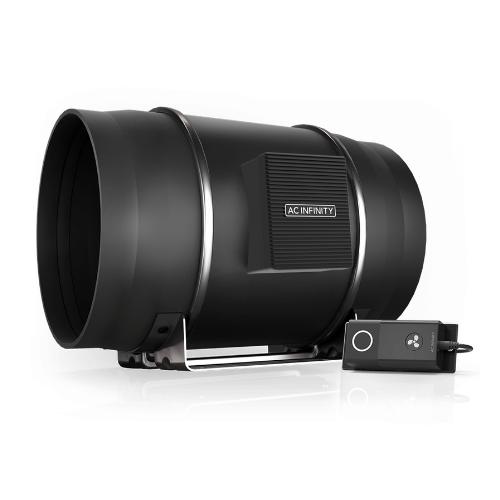

Designed to ventilate hydroponic grow rooms, transfer heating/cooling, cool AV closets, and exhaust odors.

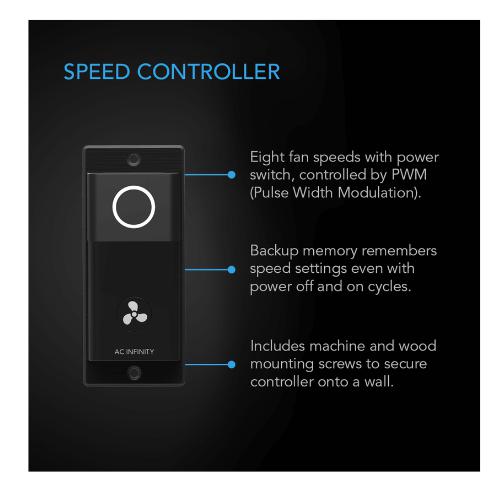

Features an 8-speed manual controller utilizing PWM. See T-Series for temperature and humidity controls.
Mixed flow design combined with a PWM-controlled EC motor for a truly quiet and energy efficient performance.
Kit also includes corded AC power plug, installation manual, and all necessary mounting hardware.
Duct Size: 12”

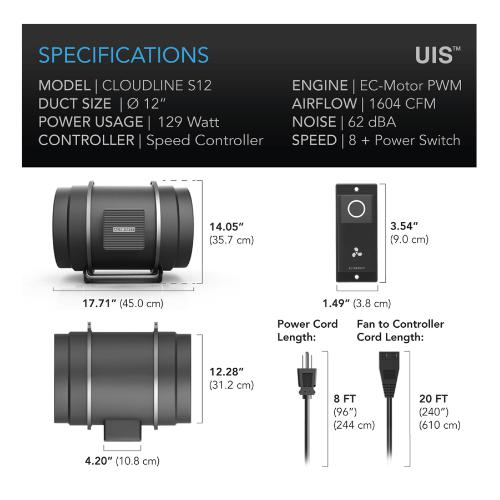

| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 12" |
| Total Dimensions | 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm) |
| Mounting Hole-To-Hole Distance | 7.00 x 7.12 in. (17.8 x 18.1 cm) |
| Screw Hole Size | Ø 0.462 in. (Ø 1.18 cm) |
| Cord Length to Controller | 240 in. (20 feet) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm) |
| Required Mounting Area | 2.95 x 0.51 in. (3.6 x 1.3 cm) |
| Hole to Hole Distance | 2.87 in. (7.3 cm) |
| Screw Hole Size | Ø 0.157 in. (Ø 0.4 cm) |
| Product Performance and Technical Specs | |
| Total Airflow | 1604 CFM |
| Total Noise | 62 dBA |
| Static Pressure | 818 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 250 W |
| Average Power Usage | 139 W |
| Current | 2.5 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
