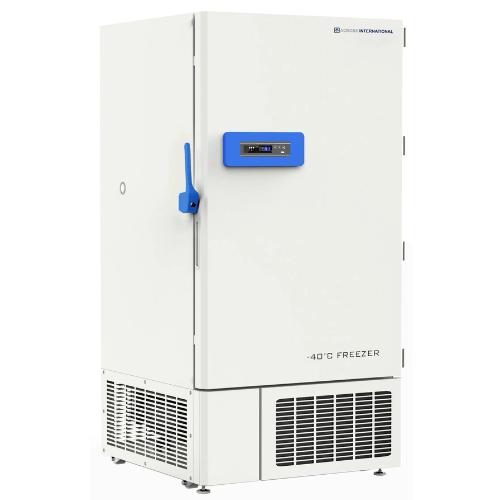

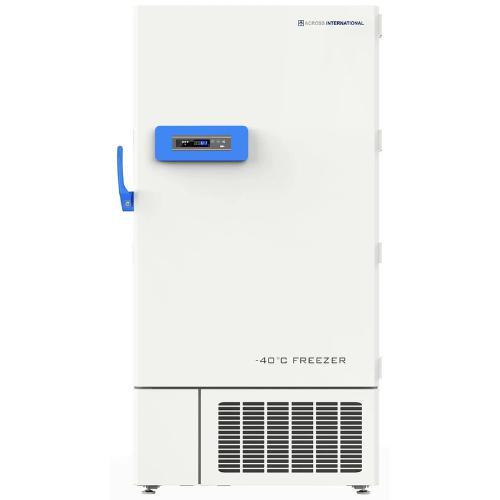

The Ai DeepFreeze series 27 Cu Ft -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features
Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
All stainless steel interior for clean operation, durability, and ease of maintenance

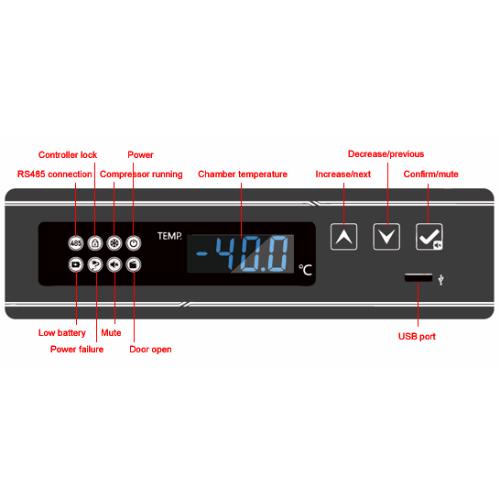

Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Stainless steel interior for clean operation, durability, and ease of maintenance
Dual silicon sealing gaskets for ultra airtight operation
72-hour battery backup for controller
Built-in remote alarm and RS-485 port
USB interface for data export and storage
Extremely quiet and reliable
Environmentally friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Built-in swivel casters with adjustable support that will secure the unit on uneven floor
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Specifications
| Model | D27 |
| Electrical requirements | 110V (±10%) 60Hz 1-Phase, 1,320W 12A |
| Performance | Temperature range: -20°C to -40°C Time to reach -40°C: 4 hours |
| Compressor | Make: SECOP Number of compressor: two Style: parallel Refrigerant: R507 |
| Chamber | Dimensions: 34 x 27.5 x 51" (WxDxH) Material: 304 stainless steel Capacity: 27.1 Cu Ft |

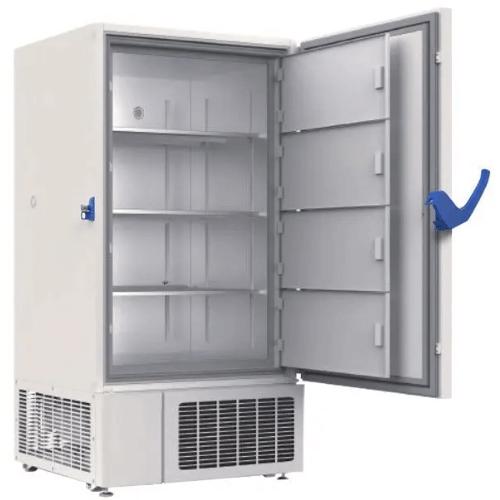

| Shelf | Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 110 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 33 x 26 inches (compatible with G27) Additional shelf unit price: $150 |
| Door and gasket | Inner door: four, each with one sealing gasket External door: one with dual sealing gasket, lock-able |
| Working environment | - Temperature: 16°C to 32°C - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Battery backup system | 72 hours (for controller display and alarms only) |
| Access port | Two, one on the side and one in the back, one inch diameter |

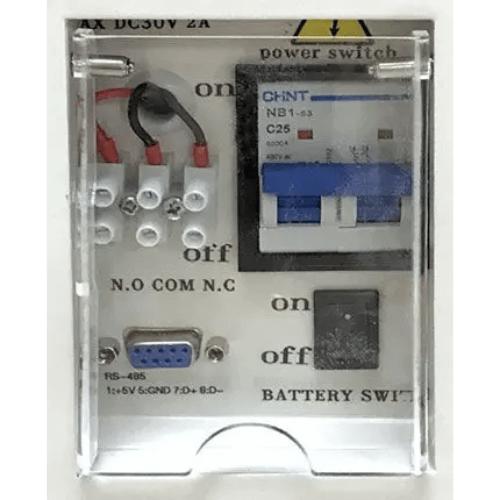

| Communication | Remote alarm 4-20mA transmitter, USB, RS-485 |
| Built-in swivel casters | Four, with two leveling feet |
| Noise level | 52 dBA |
| Unit/shipping weight & dimensions | 635 Lbs / 866 Lbs 47.5 x 41.5 x 77.5" / 51 x 46 x 85" (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |
| Warranty | One year |
