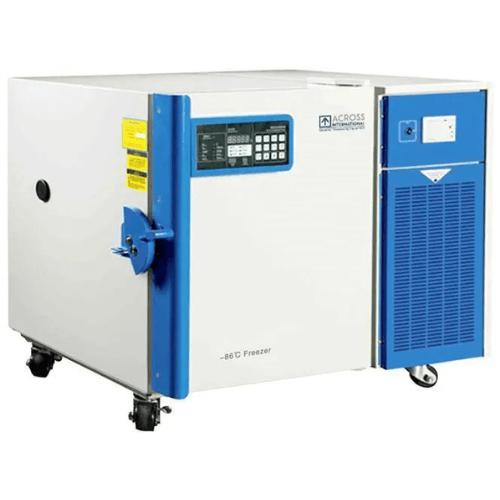

The Ai Glacier 4 Cu Ft -86°C ultra-low upright ULT freezer is designed for small labs that need a small amount of products or sample storage. Our unique single-compressor design offers ultra-low power consumption, very low noise, and ease of maintenance.
Features
CDC and VFC compliant
Great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
ETL tested to UL 61010-1 and CSA C22.2 standards
ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
Remote alarm, RS232, 4-20mA transmitter (optional)
Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Digital temperature display with microprocessor-based temperature controller
All stainless steel interior for clean operation, durability, and ease of maintenance
Built-in printer tells you exactly how long it takes to go down to all temperatures
Stainless steel interior for clean operation, durability, and ease of maintenance
Dual silicon sealing gaskets for ultra airtight operation
48-hour battery backup for controller, alarm and printer
Extremely quiet and reliable
Built-in swivel casters with locks
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Specifications
| Model | G04 |

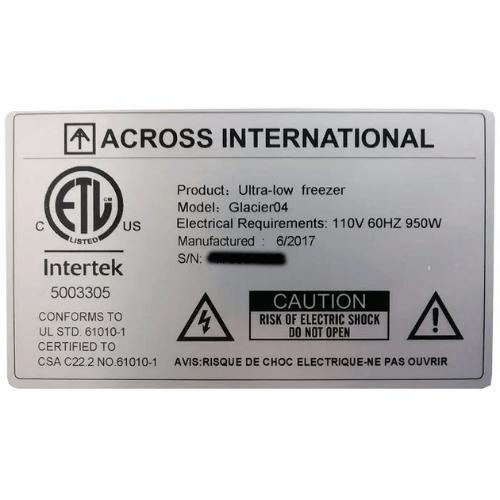

| Electrical requirements | 110V (±10%) 60Hz 1-Phase 950 watts 8.6A |

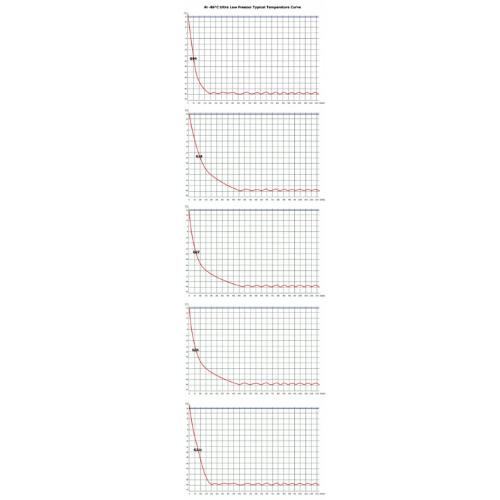

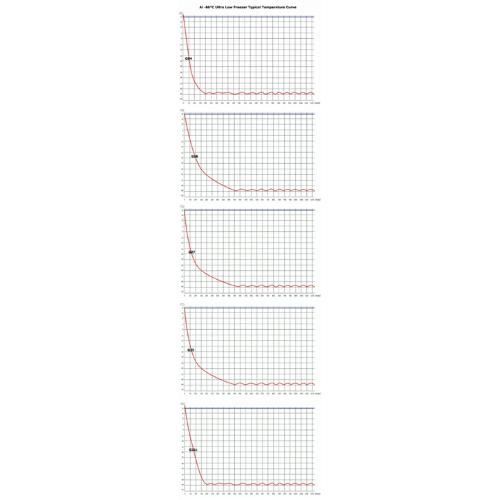

| Performance | Temperature range: -40°C to -86°C Time to reach -86°C: 4 hours |
| Compressor | Make: SECOP (formerly known as Danfoss), Germany Model: SC18MLX (104L2105) Power: 115V 60Hz 1-PHASE, 1HP Number of compressors: one Refrigerant: Ai proprietary mixture gases, CFC-free |

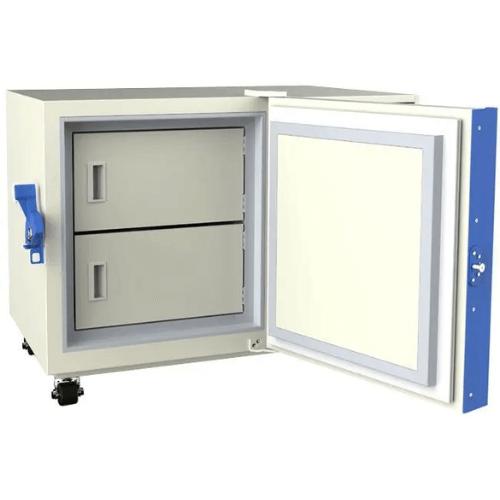

| Chamber | Dimensions: 17.75 x 19 x 20" (WxDxH) Material: stainless steel Effective capacity: 3.5 Cu Ft |
| Date printer | Built-in, records 7 days of data |
| Shelf | Come with unit: one adjustable shelf (2 compartments) Material: 304 stainless steel Capacity: 65 Lbs, evenly distributed Dimensions: 17.5 x 17.5 inches Additional shelf unit price: $200 |
| Door and gasket | Inner door: two, each with one sealing gasket External door: one with dual sealing gaskets, lock-able |
| Access port | One, 30mm diameter |
| Built-in swivel casters | Four |
| Noise level | 48 dBA |
| Communication | Remote alarm, RS232, 4-20 mA transmitter (optional) |
| Working environment | - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Battery backup system | 48 hours (for controller display and alarms only) |

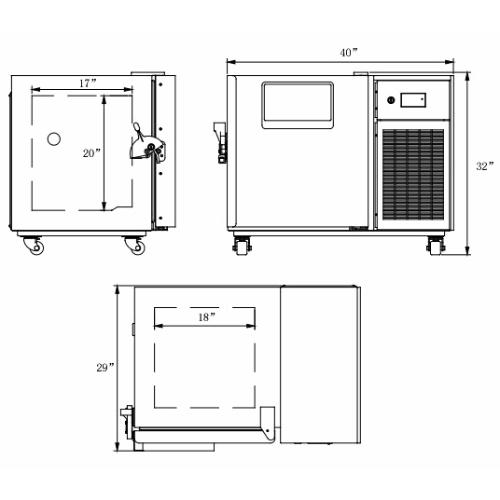

| Unit/shipping weight & dimensions | 380 Lbs / 455 Lbs 42 x 28 x 32" / 46 x 32 x 45" (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |
| Compliance | UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional) |
| Warranty | One year |
