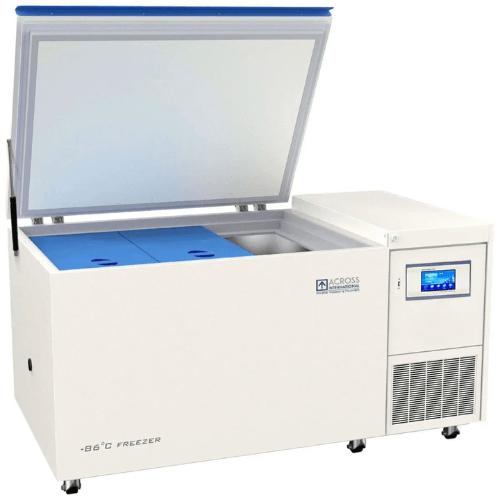

The all new Ai Glacier 21 Cu Ft -86C ultra low Temprature chest freezer is perfect for extra-large storage of sample and products. Our unique dual parallel compressor design offers you speedy cooling and great temperature uniformity inside the chamber.
Features
CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
Remote alarm, R485, 4-20mA transmitter (optional)
ETL tested to UL and CSA standards
ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
All stainless steel interior for clean operation, durability, and ease of maintenance

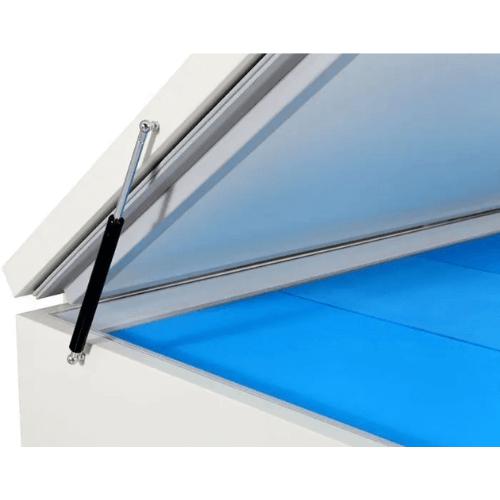

External door with hydraulic support for super ease of operationPowerful dual parallel compressor design for speedy cooling and great temperature uniformity

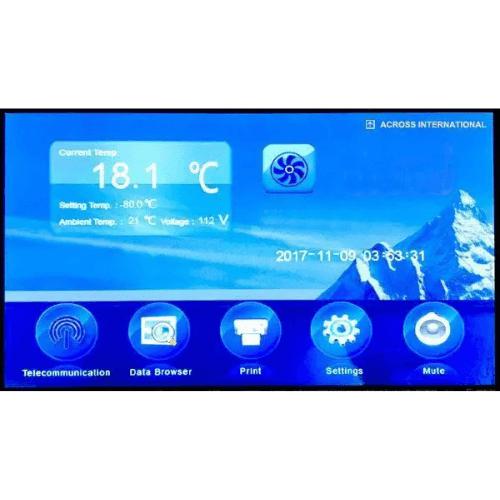

Central control with large 7" touch screen LCD display provides you a graph of temperature vs time curve.
Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Dual silicon sealing gaskets for ultra airtight operation
24-hour battery backup for controller
USB interface for data export and storage
Extremely quiet and reliable
Environmental friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Tons of safety functions
Specifications
| Model | G21c |
| Electrical requirements | 220V (±10%) 60Hz 1-Phase, 2057 watts 10.5A (NOT compatible with 220V 50Hz power) |

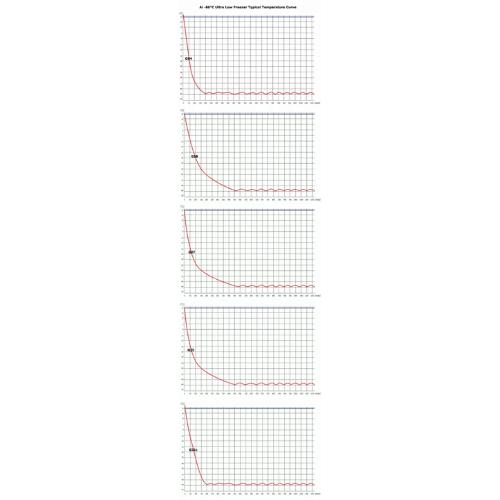

| Performance | Temperature range: -40°C to -86°C Time to reach -86°C: 6 hours |
| Compressor | Make: SECOP Model: SC18MLX (104L2138) Power: 220V 60Hz 1-PHASE 1HP Number of compressors: two, parallel Refrigerant: Ai proprietary mixture gases, CFC-free |
| Chamber | Dimensions: 47 x 32 x 24" (WxDxH) Material: 304 stainless steel Volume: 21 Cu Ft Maximum load capacity: 550 Lbs on the base of chamber, evenly distributed |
| Cover and gasket | External door: dual-level sealing gasket, lock-able, with hydraulic support Interior covers: three pieces removable foam |
| Access port | Two, one on the side and one in the back, one inch diameter |
| Built-in swivel casters | Six |
| Noise level | 48 dBA |
| Communication | Remote alarm, RS232, 4-20mA transmitter (optional) |
| Working environment | - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Battery backup system | 24 hours (for controller display and alarms only) |

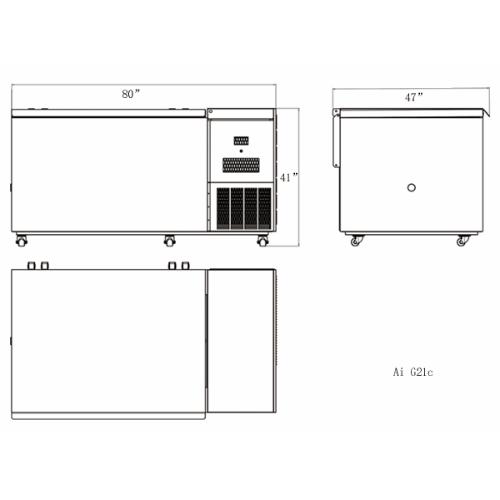

| Unit/shipping weight & dimensions | 900 Lbs / 1100 Lbs 80 x 47 x 41" / 84 x 51 x 48" (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |

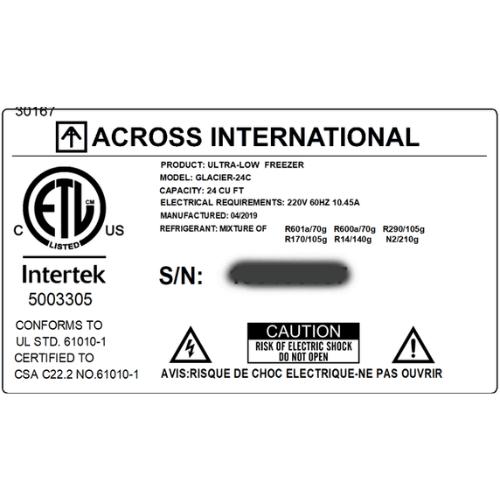

| Compliance | UL STD 61010-1 (standard) UL STD 471 (optional) CSA C22.2 NO. 61010-1 (standard) |
| Warranty | One year |
