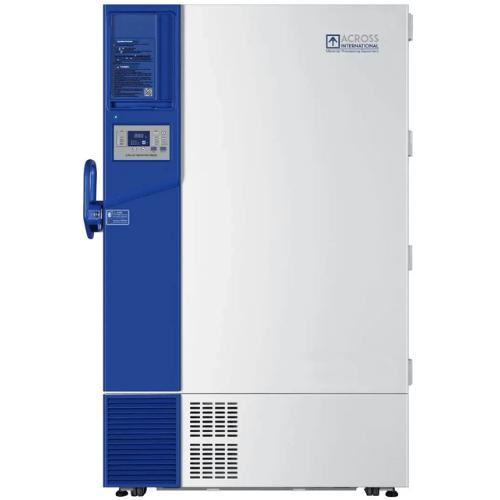

The Ai RapidChill series -86C ultra-low freezers is designed for fast cooling, ultra-low power consumption, very low noise, and ease of maintenance. All RapidChill ultra-low freezers are UL certified.
Features
CDC and VFC compliant, great for storage of vaccines, DNA, RNA, virus samples, organs, and serum
State-of-the-art Vacuum Insulated Panel (VIP, Micro-Cellular Polyurethane) insulated
Safe, environmentally friendly, energy efficient, and easy-to-acquire HC refrigeration
Remote alarm, RS-485, and optional 4-20mA transmitter
Door lock, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Digital temperature display with microprocessor-based temperature controller
Dual silicon sealing gaskets for ultra airtight operation
48-hour battery backup for controller and alarms
Extremely quiet and reliable

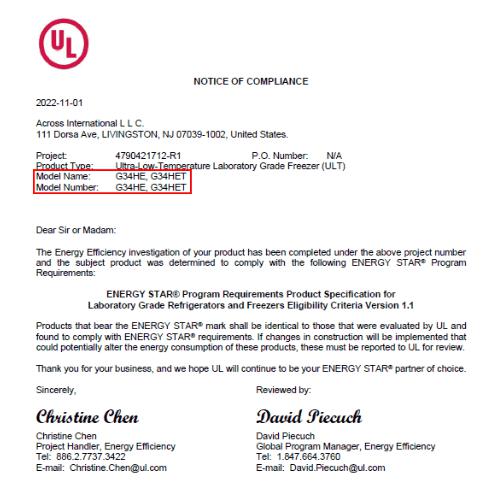

Compliant to UL 61010-1, CSA C22.2 and Energy Star standards
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Specifications
| Model | G34he |
| Electrical requirements | 230V 50/60Hz. 1300 watts, 7 amps |
| Performance | Temperature range: -40℃ to -86℃ Time from ambient to -86℃: 6 hours Uniformity: ±3 ℃ Time from -86℃ to -50℃ with the door closed (ambient 25℃): 5 hours 1 min door open recovery time (ambient 25℃, running temp -75℃): 40 mins |

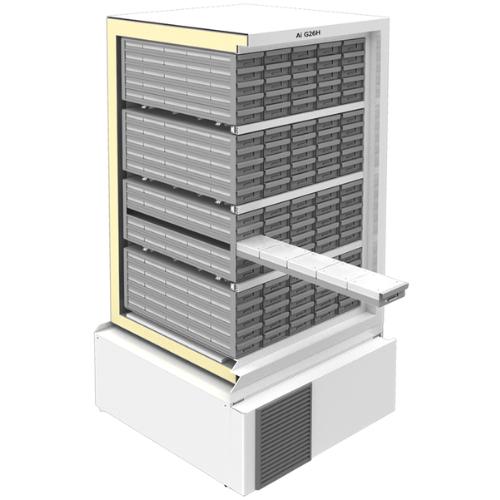

| Chamber | Chamber dimensions: 40 x 28 x 51.5 inches Shelf max. weight capacity: 126kg (278lbs) Max. weight capacity of unit: 504kg (1111 lbs) 5x5x2" boxes capacity: 700 boxes |
| Volume | 34 cu ft |
| Certificate | UL, Energy Star, CE |
| Information | Eco-friendly HC refrigerant Low noise 47 dBA USB interface, RS485 port Mobile casters Optimized insulation with VIP technology |
| Usage | Inverter technology for 0.33kWh/day/cu-ft ultra-low power consumption, comparing to Thermo TSX70086A's 0.36 kWh/day/cu-ft |
| Working environment | - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Unit/shipping weight & dimensions | Unit: 990 Lbs, 51 x 39.5 x 78 inches Shipping: 1070 Lbs, 54 x 43.5 x 84.5 inches |
| Safety |
|
| Warranty | 2-year full service, 3-year parts, 5-year compressor |
