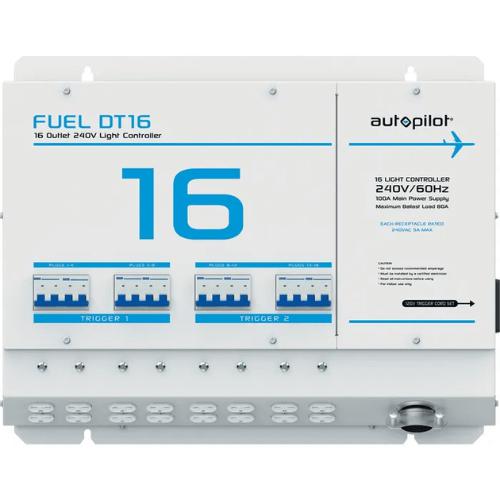

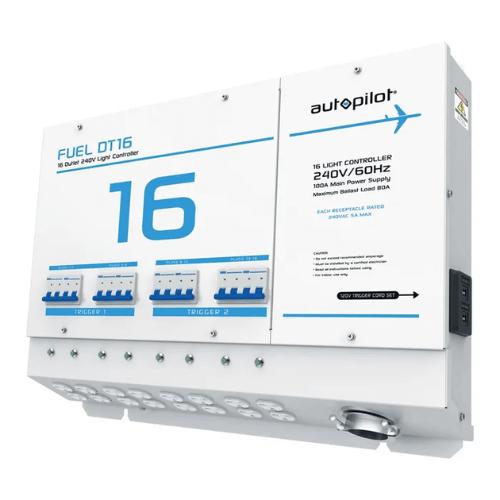

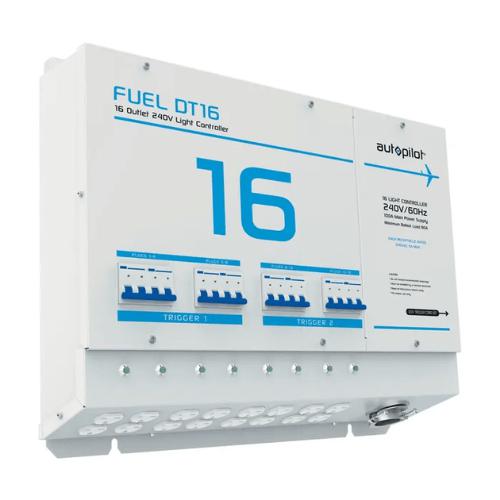

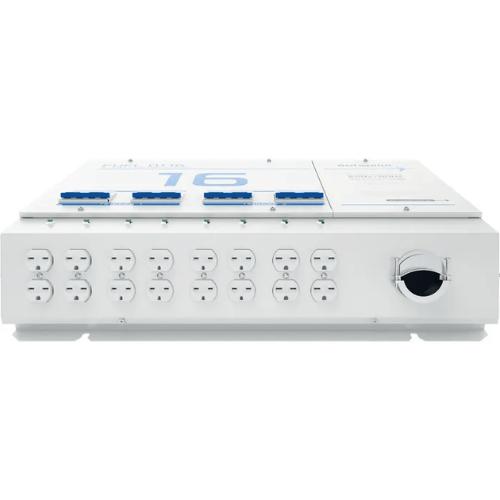

The FUEL DT16 represents the latest in large scale professional lighting control. It is among the best devices for controlling up to 16 lights. This unit features 240V industrial-grade NEMA 6-15 UL-listed power outlets. All outlets are controlled by two 120V trigger cables. Each trigger cable controls 8 lights. The 16 light controller has 4 banks of 4 lights. Each bank has a 30-second time delay and is protected by an industrial-grade circuit breaker.
| Specifications | |
|---|---|
| Main Power Voltage | 240V |
| Wire Requirements | Minimum 3 AWG (75°C Cu wire ONLY) |
| Maximum Wattage | 16,000 Watts (1000 Watts per outlet) @240V |
| Max Input Amperage | 100 Amps |
| Max Output Amperage | 80 Amps |
| Relay Coil Voltage | 120 VAC |
| Hertz | 60 Hz |
| Receptacle Type | Nema 6-15 |
| Operating Temperature Range | 40-125° F (4.5-52° C) |
| Shipping Dimensions | 30.7L x 22.4W x 8.7H (EA) |
| Shipping Weight | 38.6 lbs. |
