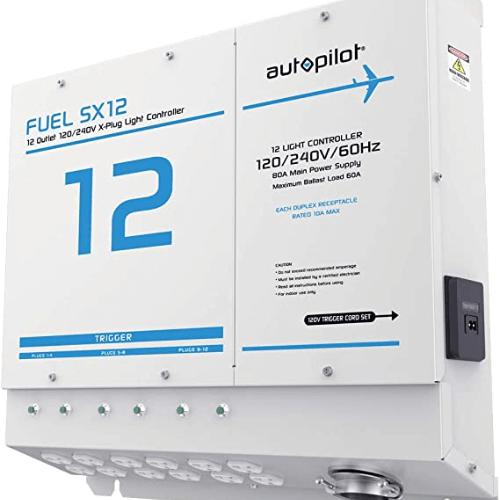

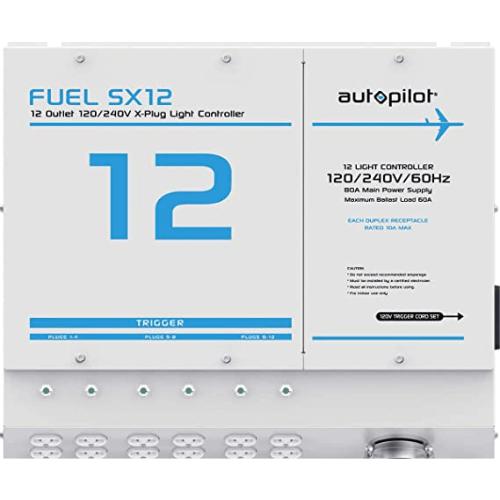

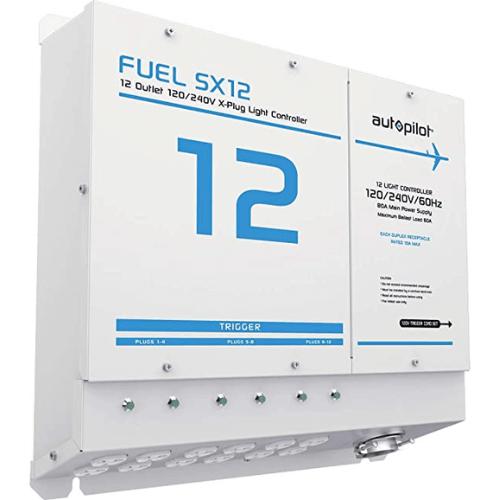

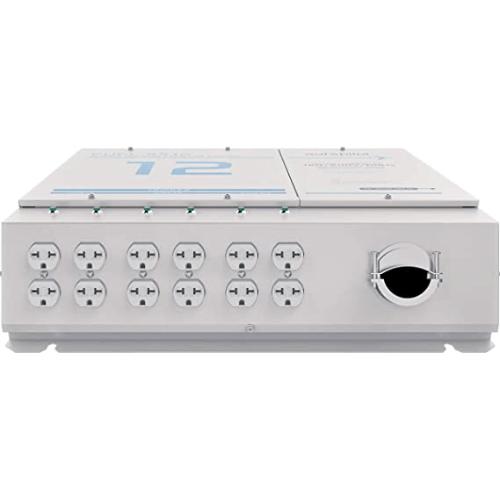

The FUEL SX12 represents the latest in large scale lighting control. It is among the best devices for controlling up to 12 lights. This unit features 120/240V universal style X-plug outlets, which allow the controller to operate 120V or 240V ballasts depending on the wired voltage. All outlets are controlled by one 120V trigger cable. The 12 light controller has 3 banks of 4 lights. Each bank has a 30-second time delay.
| Specifications | |
|---|---|
| Main Power Voltage | 120V or 240V |
| Wire Requirements | Minimum 4 AWG (75° Cu wire ONLY) |
| Maximum Wattage | 7,200 Watts (600 Watts per outlet) @120V 12,000 Watts (1000 Watts per outlet) @240V |
| Max Input Amperage | 80 Amps |
| Max Output Amperage | 60 Amps |
| Relay Coil Voltage | 120 VAC |
| Hertz | 60 Hz |
| Receptacle Type | Universal X-Plug 120/240V |
| Operating Temperature Range | 40-125° F (4.5-52° C) |
| Shipping Dimensions | 30.7L x 22.4W x 8.7H (EA) |
| Shipping Weight | 35.5 lbs. |
