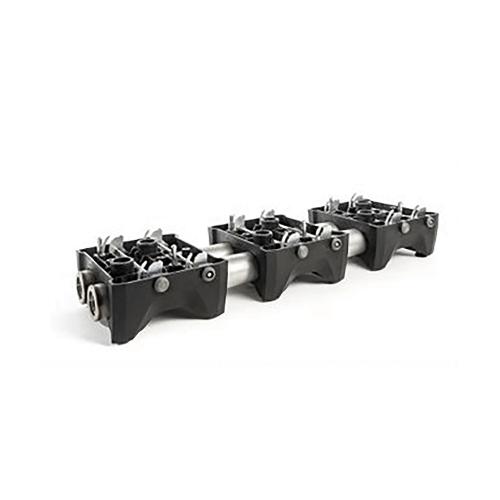

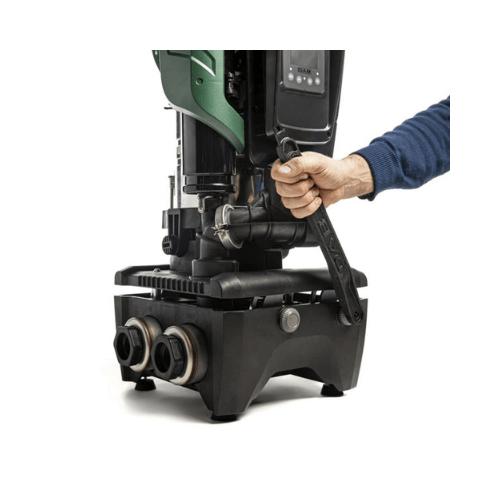

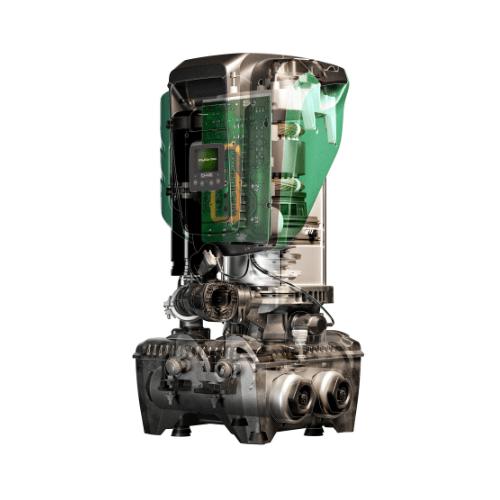

Integrated pumping system for pressurization in commercial building service. Available in two power sizes, it consists of modular elements that allow different configurations to cover the needs of medium/large condominiums and high buildings (even over 14 floors). Each unit consists of the single, double or triple connection base and the pumping units; a four-pumps system is available with the additional kit to connect two double bases. The modular construction allows to assemble the pumping groups directly at the installation site (O.S.A. concept).
| Specifications | |
|---|---|
| Flow Rate | Up to 76 gpm (17,4 m3/h) For single unit |
| Type of Pumped Liquid | Clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral |
| Liquid Temperature | +104°F (40°C) |
| Maximum Ambient Pressure | +113°F (45°C) |
| Maximum Inlet Pressure | 72psi (5 bar) |
| Operation Pressure | 174psi (12 bar / 1200 kPa) |
| Constant Pressure Range | 15-174 (1-12 bar ) |
| Impeller Material | Technopolymer |
| Single Phase Power Input | 208-240V 50/60Hz |
