Product Highlights
Primary Coverage
Flower- 5' x 5'
Wattage
1000 Watts
Voltage
240 Volts
Bulb Type
DE HPS
UL Listed
No
Warranty
Ballast- 3 Year / Bulb- 1 Year
Frequently Bought Together

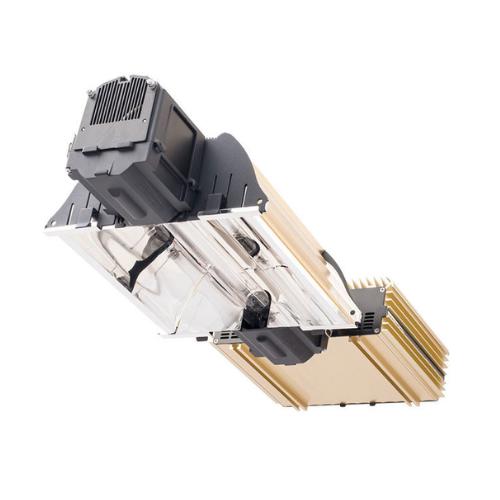

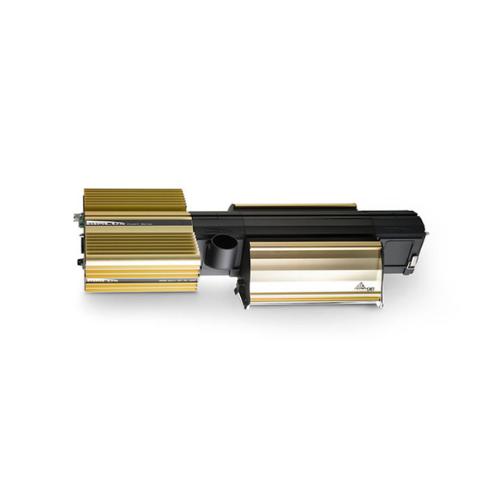

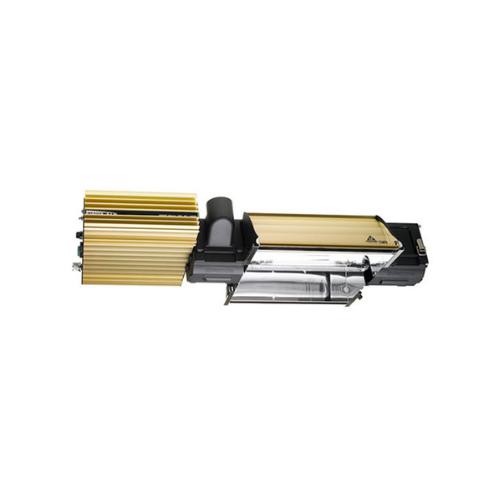

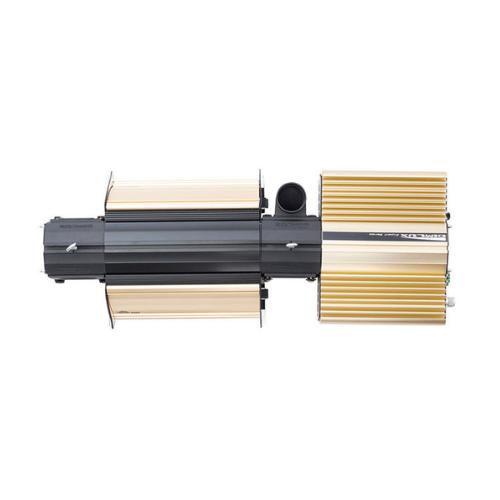

The Dimlux Expert Series 1000W DE EL UHF is a complete fixture including the Ultra Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved. NanoTubes allow you to cool your Dimlux light system using a separate air supply from the rest of the grow space. This will allow you to keep your grow room atmosphere under more precise control, and alleviate any extra stress on the air conditioning system.
| Specifications | |
|---|---|
Reflector | Ultra Optics Miro Silver with 98% Efficiency |
Output | 600-1200 Watt |
Connection | 230V standard (also available with 277V upon request) |
| Overdrive | 20% |
Soft Start | Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller |
| Soft Dim | Yes |
Dimming | 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as Infinite Step-less dimming |
Dim Levels | Soft Off, 600WATT, 700WATT, 800WATT, 900WATT, 1000WATT, 1100WATT, 1200WATT |
Frequency | UHF Ultra High 140 KHz |
Lamp | Philips Master GreenPower Plus 1000WATT / 400V DE EL 2.2 Plus lamp |
Power Consumption | @1000WATT = 1.050WATT 4.5A at 230V; @1200WATT – 1.260WATT, 5.2A at 230V |
Par / PPF | 2,470 µmol/s at 1200WATT * 2.05 µmol/Watt |
Illumination Surface | @1000WATT = min 1.4m² (15.06ft²), max 3.3m² (35.52ft²) 6 x 6 Footprint/Spread; @1200WATT = min 1.65m² (17.76ft²), max. 4m² (43.05ft²) 6½ x 6½ Footprint/Spread |
Diagnostics | Red & green LED signals |
Dimensions | 26 ½” x 10 ¾” x 5 ⅛” / 67.5cm x 27.5cm x 13cm |
Weight | 13.88 lbs / 6.3 Kg |
The Dimlux Expert Series 1000W DE EL UHF is a complete fixture including the Ultra Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. As a result the highest possible efficiency (98%) of all available horticulture reflectors is achieved. NanoTubes allow you to cool your Dimlux light system using a separate air supply from the rest of the grow space. This will allow you to keep your grow room atmosphere under more precise control, and alleviate any extra stress on the air conditioning system.
| Specifications | |
|---|---|
Reflector | Ultra Optics Miro Silver with 98% Efficiency |
Output | 600-1200 Watt |
Connection | 230V standard (also available with 277V upon request) |
| Overdrive | 20% |
Soft Start | Low inrush for use without Maxi Controller and Zero start (no inrush) for use with the Maxi Controller |
| Soft Dim | Yes |
Dimming | 7 dim levels and off mode. Can be switched on and off via the Maxi Controller as well as Infinite Step-less dimming |
Dim Levels | Soft Off, 600WATT, 700WATT, 800WATT, 900WATT, 1000WATT, 1100WATT, 1200WATT |
Frequency | UHF Ultra High 140 KHz |
Lamp | Philips Master GreenPower Plus 1000WATT / 400V DE EL 2.2 Plus lamp |
Power Consumption | @1000WATT = 1.050WATT 4.5A at 230V; @1200WATT – 1.260WATT, 5.2A at 230V |
Par / PPF | 2,470 µmol/s at 1200WATT * 2.05 µmol/Watt |
Illumination Surface | @1000WATT = min 1.4m² (15.06ft²), max 3.3m² (35.52ft²) 6 x 6 Footprint/Spread; @1200WATT = min 1.65m² (17.76ft²), max. 4m² (43.05ft²) 6½ x 6½ Footprint/Spread |
Diagnostics | Red & green LED signals |
Dimensions | 26 ½” x 10 ¾” x 5 ⅛” / 67.5cm x 27.5cm x 13cm |
Weight | 13.88 lbs / 6.3 Kg |
