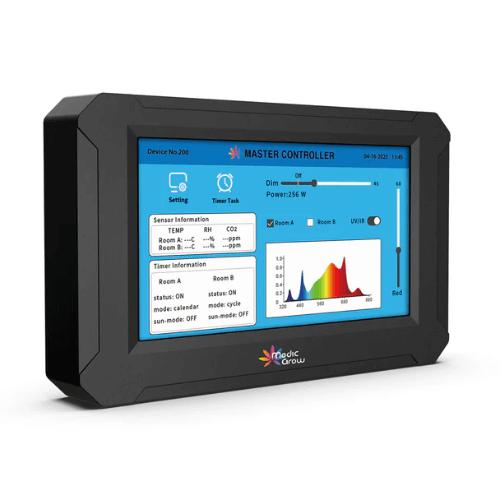

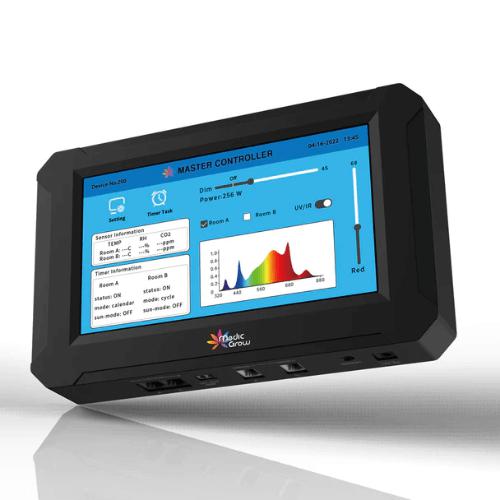

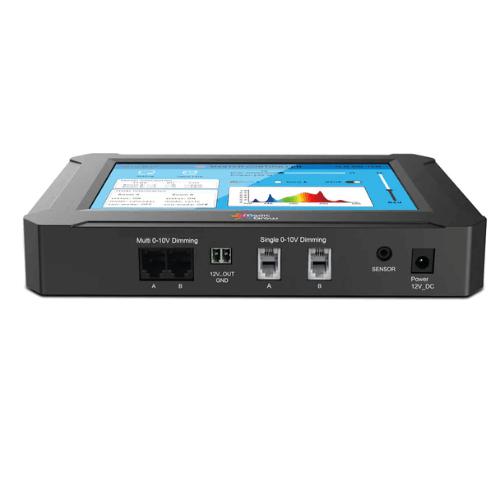

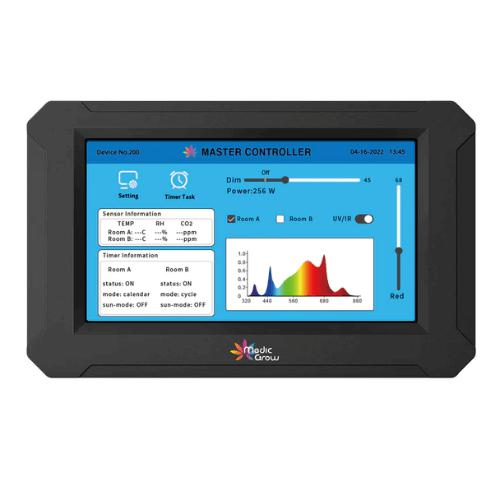

TSC-2 Master Controller supports both WIRELESS and 0-10V Wired connection, so it is compatible not only with Medic Grow’s Light fixtures, but also with most of the LED Grow Light Fixtures in the markets by 0-10V dimming .
| Specifications | |
|---|---|
| Installation Method | Wall Hanging |
| Screen | 7 inch TFT LCD display |
| Dimension (mm) | 8.07'' x 5.1" x 1.24"/L-205 x W-129 x H-31.5 (mm) |
| Net Weight | 0.465 kg 1.02 lb |
| Input Voltage of Controller | DC 12 V |
| Input Voltage of Adaptor | 100-240 V AC, 50/60 Hz |
| AC Current | 1A |
| Material of Shell | PC+ABS Etched black |
| Fire rating of Shell | 94 - V1 |
| Sunrise Sunset | Yes |
| Overheating protection | Yes |
| Connection Method | Wired connection or wireless connection |
