The Ai DeepFreeze series -40C freezers is perfect for large storage of sample and products. Our unique single-compressor design offers low power consumption, exceptionally low noise, and ease of maintenance.
Features
Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum
High/low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
Dual silicon sealing gaskets for ultra airtight operation
48-hour battery backup for controller
Built-in remote alarm and RS-485 port
USB interface for data export and storage
Environmentally friendly refrigerant
Use only RoSH compliant non-toxic components and materials
Important!
Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
This unit is NOT designed to be used on a mobile platform.
Specifications
| Model | D16 |
| Electrical requirements | 110V (±10%) 60Hz 1-Phase 8.89A |
| Performance | Temperature range: -20°C to -40°C |
| Compressor | Number of compressors: two Cooling method: direct cooling Defrost mode: manual Style: parallel Refrigerant: R290 |
| Chamber | Dimensions: 25.5 x 22.5 x 24.5" (WxDxH) Number of chambers: two Material: stainless steel Volume: 15.9 Cu Ft |

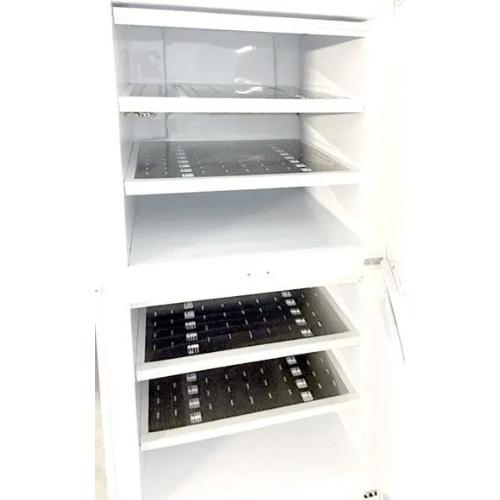

| Shelf | Quantity: two in each chamber, four in total Style: fixed Material: stainless steel |
| Door | 2 |
| Working environment | - Temperature: 16°C to 32°C - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
| Access port | Two |
| Communication | Remote alarm 4-20mA transmitter, USB, RS-485 |
| Built-in swivel casters | Four, two with brakes |
| Noise level | 52 dBA |

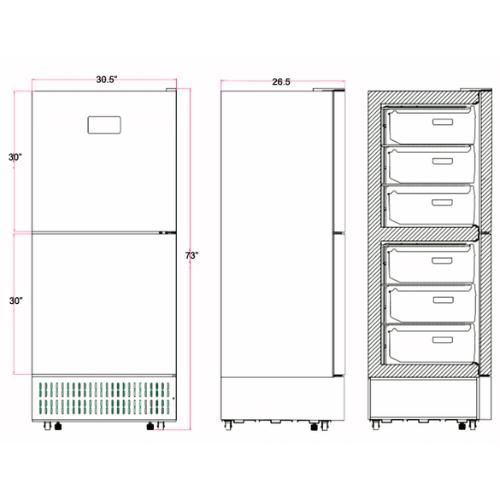

| Unit/shipping weight & dimensions | 320 Lbs / 345 Lbs 30.5 x 26.5 x 73" / 37.5 x 34.5 x 80" (WxDxH) |
| Safety | Compressor over-temp protection Compressor power surge delay protection Power failure protection Low battery, door open, filter clogging, system failure, sensor error, condenser overheat alarms External door with lock |
| Warranty | One year |
