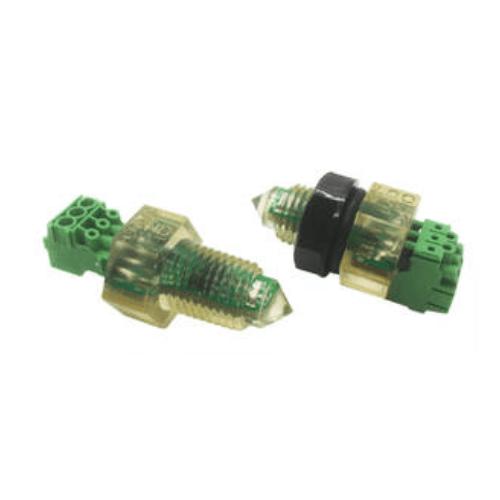

Electronic optical "liquid level control system" includes two liquid sensors for high and low "fill" or "drain" control of fluids in tanks, reservoirs, etc. Only power and a valve or relay is required to complete the level control system; no external controller required. Easy to wire and setup. Includes one standard and one latching sensor. Compatible with 5-24Vdc valves and relays. Available with optional VX1 water valve kit or RX1 outlet kit for direct operation of 120Vac pumps, valves and other equipment.
| Specification | |
|---|---|
| Voltage Input | 5-24Vdc |
| Output Current | Max 1A (sourcing) |
| Current Consumption | 20mA per sensor |
| Mounting Thread | 1/4" NPT |
| Hex Size | 3/4" (19mm) |
| Body Material | Polysulphone |
| Temperature Range | -20 to 80°C (non-freezing) |
| Wire Gauge | 26 - 16 AWG |
