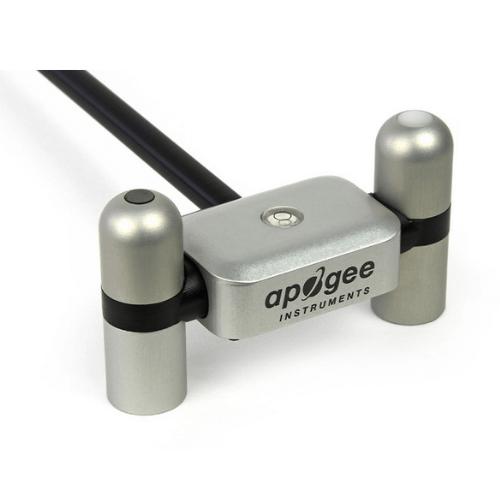

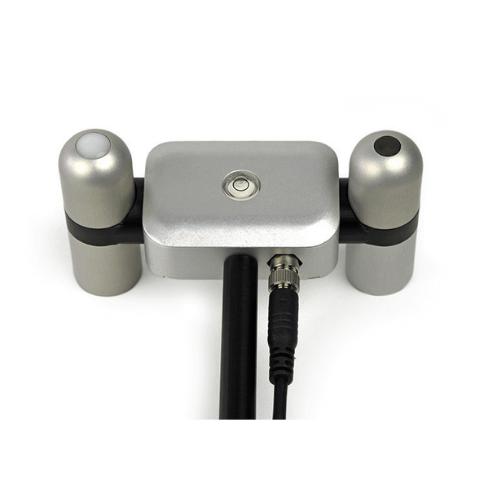

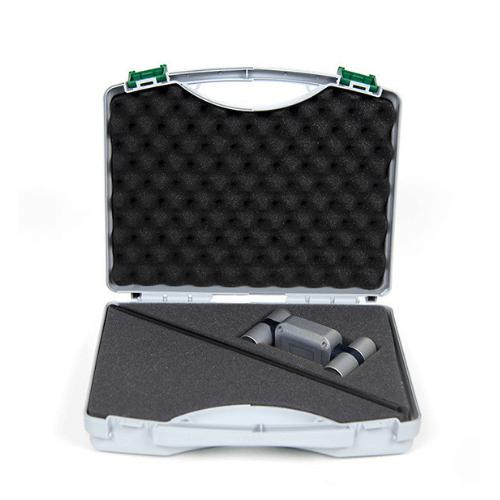

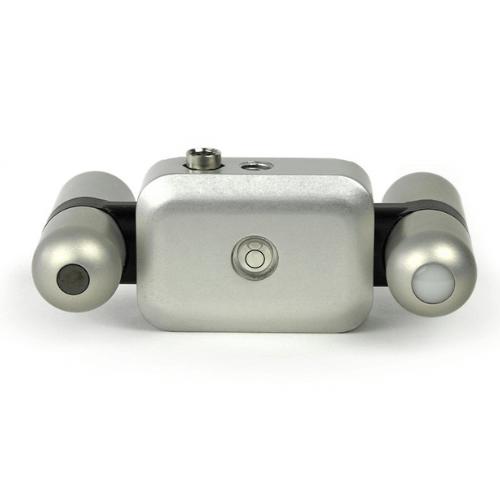

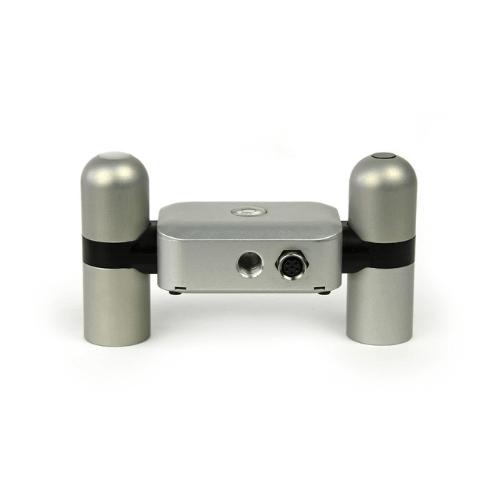

Apogee Instruments' new four-component net radiometer provides individual measurement of net radiation components. The sensor features an SDI-12 output, eliminating the need for multiple analog channels to measure the individual components of net radiation. The net radiometer comes as a complete package that includes net radiometer, mounting rod, pigtail lead cable for datalogger interface, and carrying case.
| Specifications | |
|---|---|
| Input Voltage Range | 5.5 to 24 V DC |
| Heaters | 62 mA current drain and 740 mW power requirement at 12 V DC |
| Pyrgeometer Measurement Range | -200 to 200 W mˉ² |
| Operating Environment | -50 to 80 C; 0 to 100 % relative humidity |
| Dimension | 116 mm length, 45 mm width, 66 mm height |
| Mass | 320 g |
Apogee Instruments' new four-component net radiometer provides individual measurement of net radiation components. The sensor features an SDI-12 output, eliminating the need for multiple analog channels to measure the individual components of net radiation. The net radiometer comes as a complete package that includes net radiometer, mounting rod, pigtail lead cable for datalogger interface, and carrying case.
| Specifications | |
|---|---|
| Input Voltage Range | 5.5 to 24 V DC |
| Heaters | 62 mA current drain and 740 mW power requirement at 12 V DC |
| Pyrgeometer Measurement Range | -200 to 200 W mˉ² |
| Operating Environment | -50 to 80 C; 0 to 100 % relative humidity |
| Dimension | 116 mm length, 45 mm width, 66 mm height |
| Mass | 320 g |
