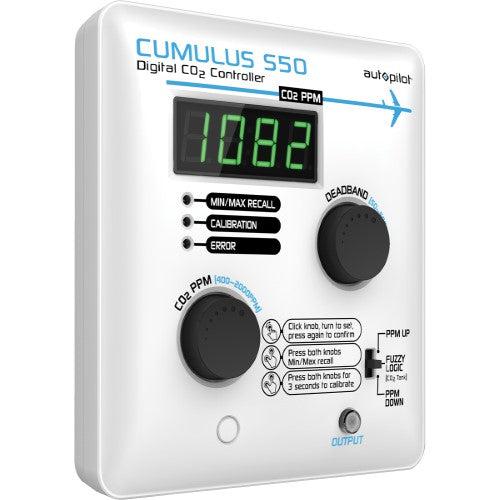

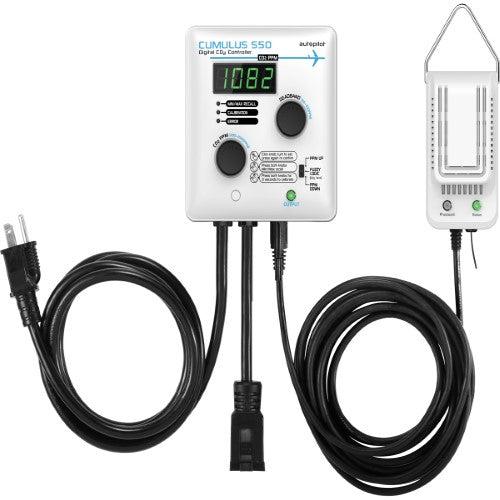

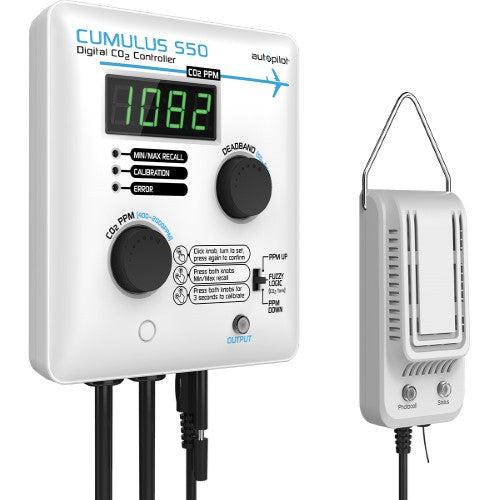

The Autopilot Cumulus S50 Digital CO2 Controller measures and controls grow room carbon dioxide levels with great precision. It can operate in Fuzzy Logic mode, ppm Up or ppm Down mode. The S50 digital display shows exact ppm readings down to 1 ppm resolution. It boasts a fully customizable CO2 set point and deadband, min/max recall, LED mode and error indicators, optional calibration and a remote 15' low drift CO2 sensor with photocell.
| Specifications | |
|---|---|
| Max amperage | 14.5 amps @ 120VAC 60 Hz |
| Sensor cord length | 15' (4.5 m) |
| CO2 Range | 400-2000 PPM |
| CO2 Accuracy | ±100 PPM |
Weight | 2.1 lbs (1.0 kg) |
| Dimensions | 5.07" x 4.68" x 1.95" (130 x 120 x 50 mm) |
| Recycling OFF timer range | 1 second to 24 hours |
| Timer mode | DAY/NIGHT/24 hours |
| Weight | 3.5 lbs (1.6 kg) |
| Dimensions | 8.0” x 3.3” x 7.5” (202 x 85 x 191 mm) |
