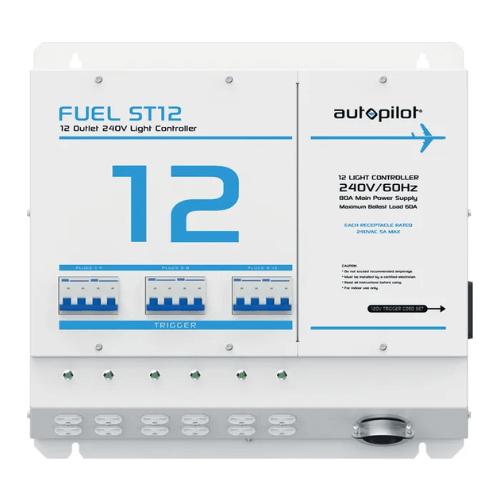

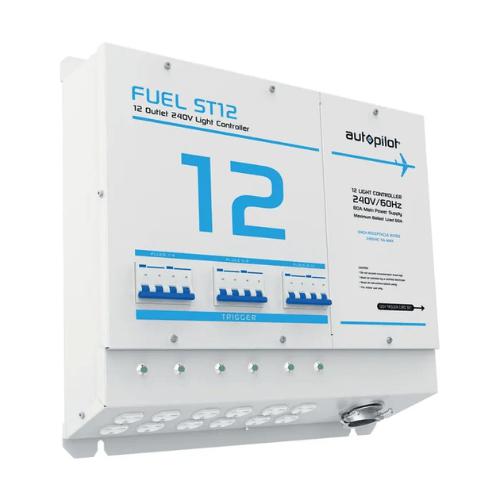

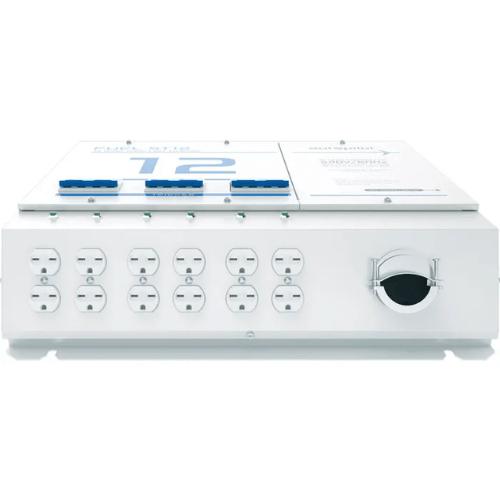

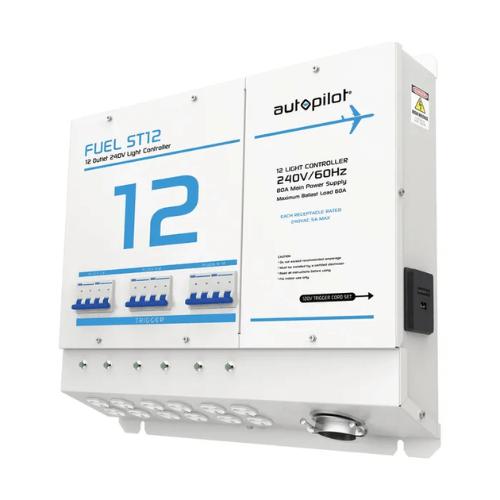

The FUEL ST12 represents the latest in large scale professional lighting control. It is among the best devices for operating up to 12 lights. This unit features 240V industrial-grade NEMA 6-15 UL-listed power outlets. All outlets are controlled by a single 120V trigger cable. The 12 light controller has 3 banks of 4 lights. Each bank has a 30-second time delay and is protected by an industrial-grade circuit breaker.
| Specifications | |
|---|---|
| Main Power Voltage | 240V |
| Wire Requirements | Minimum 4 AWG (75° Cu wire ONLY) |
| Maximum Wattage | 12,000 Watts (1000 Watts per outlet) @240V |
| Max Input Amperage | 80 Amps |
| Max Output Amperage | 60 Amps |
| Relay Coil Voltage | 120 VAC |
| Hertz | 60 Hz |
| Receptacle Type | Nema 6-15 |
| Operating Temperature Range | 40-125° F (4.5-52° C) |
| Shipping Dimensions | 31.0L x 22.4W x 8.7H (EA) |
| Shipping Weight | 38.5 lbs. |
