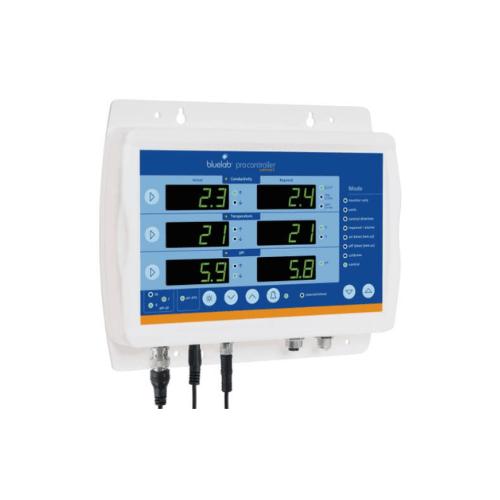

Bluelab® Pro Controller™ automated pH and nutrient controller gives you full control of reservoir pH, conductivity and temperature in one place. When connected to a dosing system, the Bluelab® Pro Controller™ manages pH, conductivity and temperature levels in reservoirs. As your plants feed, pH and nutrients are automatically adjusted to the desired range. Monitor, data log and control your system in real time for immediate response to personalized settings and system alerts, direct from your computer. Customize your system setup by pairing with Bluelab® PeriPod™ and optional PowerPod™, Alarm Box and/or Sample Pot. Easy to navigate menu to program and adjust settings and remote viewing with Bluelab® Connect™ Software and Apps. Bright, plant-safe green LED with adjustable brightness, simple pH calibration with on screen instructions, high and low alarm control lockouts, auto resume dosing on restart after power loss and dosing lockouts to protect from over-dosing. Probe cable length is 6.5 ft.
| Specification | |
|---|---|
| Units | pH
|
| Measurement
Range | 0.0 - 14.0 pH
|
| Control Range | 0.1 - 13.9 pH
|
| Resolution | 0.1 pH
|
| Accuracy at
25°C/77°F | ±0.1 pH
|
| Calibration | One, two or three point
(pH 7.0, pH 4.0 and/or pH 10.0) |
| Temperature
Compensation |
Yes
(if ATC probe is connected) |
| Operating
Environment | 0 - 50°C / 32 - 122°F, splash proof
|
| Power Source Input | 100-240 Vac, 50-60 Hz, 5 VA, 4 interchangeable plug types
(USA, Euro, UK, NZ/AUS) Output: 24VDC 0.4amp. |
| Alarms &
Lockouts
Alarm | visual, settings retained if power failure occurs.
Settable high and low alarm lockout values. |
| Dosing On-time dosing | settable from 1 to 10 minutes in one-second steps.
Off-time dosing: settable from 0 to 59 minutes and 50 seconds in 10 second steps. |
| Signal Range Indoor / Urban | 66 feet / 20 meters
Outdoor / RF line-of-sight: 164 feet / 50 meters |
| Frequency
Band | 2.4 GHz ISM
|
| System
Requirements | Microsoft Windows XP or greater for Bluelab® Connect™ Software.
Internet connection for remote access & data-logging to the cloud. |
| Certifications | CE, FCC, IC. Contains Model XBEE2 Radio,
IC: 4214A-XBEE2, FCC ID: OUR-XBEE2 |
