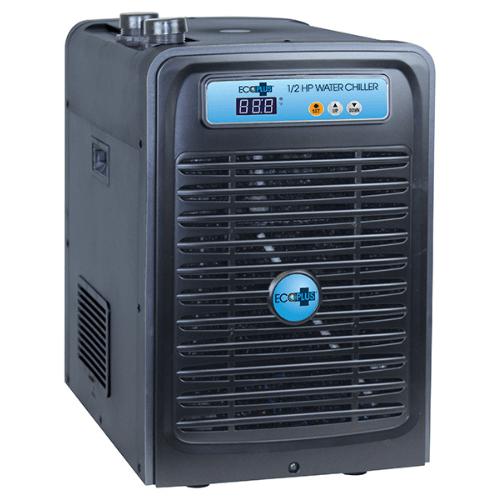

Fight warm water problems with an EcoPlus® Water Chiller! Digital control system for accurate, stable water temperature that helps to keep your reservoir cool. Environmentally safe, freon-free R134a refrigeration system that has high energy efficiency. Will chill the water from 37° to 90°. Anticorrosive, pure titanium evaporator. Includes overcurrent protection system and memory protection. Max water volume of 132 gallons. Recommended pump size 317—793 GPH. Includes plumbing connections of 3/4 in male NPT with hose fittings. 120 V at 4.4 Amps. Dimensions are 21 in W x 15.5 in D x 22 in H and weighs 52 lb.
| Specifications | |
|---|---|
| Rated Voltage | 110-120V |
| Rated Frequency | 60Hz |
| Working Current | 4.4A |
| Max. Refrigerated Water Volume | 132 Gal. (160L) |
| Water Temp. Before Refrigeration | 82˚F (28˚C) |
| Refrigeration Time (Hours) | 20 |
| Water Temp. After Refrigeration | 61˚F (16˚C) |
| Refrigerant | R134a |
| Refrigerant Weight | 9.17 oz. (260g) |
| Rate Flow | 317 - 793 GPH (1200 - 3000 L/H) |
| Weight | 43.7.7 lbs. (19.8 Kg) |
| Size | 18.1 x 12.6 x 23.43 in. (460 x 320 x 595 mm) |
