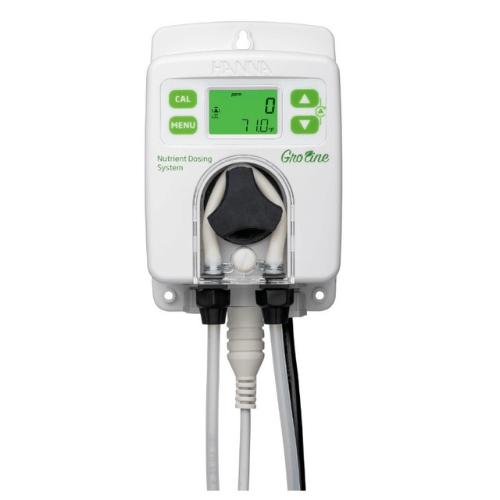

Engineered to be an inexpensive solution for the hydroponic or greenhouse grower to maintain the ideal nutrient solution concentration level in the reservoir tank. The HI981413 GroLine Nutrient Dosing System is a complete solution with advanced process controller and a built in chemical dosing pump. Simply insert the probe and injection valve in-line with the re-circulation pump and supply the stock fertilizer to be dosed.
| EC Range | 0.00 to 10.00 mS/cm |
|---|---|
| EC Resolution | 0.01 mS/cm |
| EC Accuracy | 2% F.S. |
| EC Calibration | User calibration |
| TDS Range | 0 to 9900 ppm, depends on TDS factor i.e. with TDS factor 0.5, range 50 to 5000 ppm with TDS factor 0.7, range 70 to 7000 ppm |
| TDS Resolution | 1 ppm |
| TDS Accuracy | 2% F.S. |
| EC/TDS Temperature Compensation | automatic |
| Temperature Correction Coefficient | β can be set from 0%/°C to 2.4%/°C; default is 1.9%/°C |
| EC to TDS Conversion Factor | TDS factor selectable from 0.45 to 0.99 |
| EC/TDS Dosing Set Point | on/off control using adjustable set point (0.10 to 10.00 mS/cm; 45 to 9900 ppm, depends on TDS factor) proportional control 0.10 to 10.00 mS/cm; 45 to 9900 ppm, depends on TDS factor |
| EC/TDS Proportional Band | 0.05 to 1.00 mS/cm; 23 to 990 ppm, depends on TDS factor |
| EC/TDS Hysteresis Band | 0.05 to 0.50 mS/cm; 23 to 495 ppm, depends on TDS factor |
| Temperature Range | -5.0 to 105.0°C; 23.0 to 221.0°F* |
| Temperature Resolution | 0.1°C; 0.1°F |
| Temperature Accuracy | ±0.5°C; 1°F |

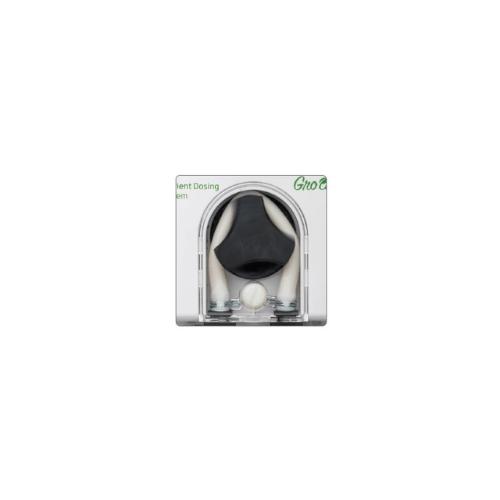

| Dosing Control | startup delay timer at power-on (0 to 600 sec.) Pump flow control 0.5 to 3.5 Liter/hour (0.13 to 0.92 Gallon/hour) and maximum output pressure 1 atm (14 psi) manual control for pump priming (defined in setup) |
| Alarm Relay Set Point | triggered after 5 sec. if the controller records consecutive readings over or under threshold values |
| Over Dosing Control | overtime protection (1 to 180 min. or Off) |

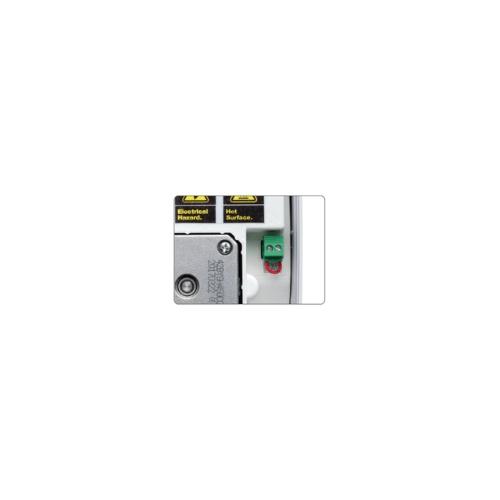

| Digital Input Signal | galvanically isolated external switches can be attached to stop the pump and activate the alarm (low reagent level) when the switch is open and level alarm is configured in Setup |
| Backlight | intuitive alarm system, using red, yellow and green color coded backlight |
| Power Consumption | 15 VA |
| Enclosure | wall mounted, built-in pump |
| Power Supply | 100 - 240 Vac, 50/60 Hz |
| Environment | 0 to 50°C (32 to 122°F); RH max. 95% non-condensing |
| IP Rating | IP65 |
| Dimensions | 90 x 142 x 80 mm (3.5 x 5.6 x 1.8”) |
| Weight | 908 g (36 oz.) |
