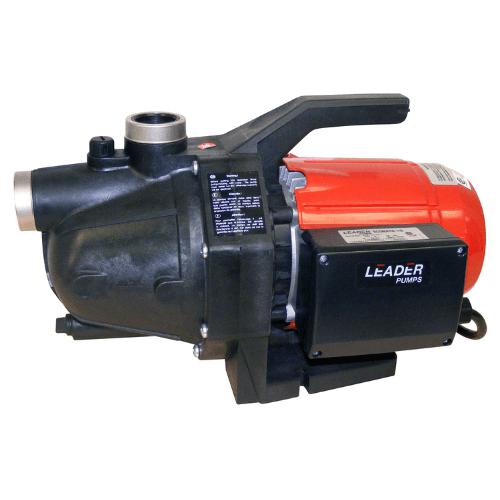

Highly reliable electronic booster sets for supplying water for domestic applications. Equipped with an electronic safety device that protects the pump from dry-running. Built-in non return valve. Designed to automatically start and stop the pump when taps are open or closed. Automatic and manual reset. These type of pumps give a constant pressure and flow rate so they are excellent for irrigation systems. Anticorrosive and rustproof materials. Motor with thermic overload protection.
| Specifications | |
|---|---|
| Operating Range | From 1 to 21gpm with a head up to 164ft ( 71 psi ) |
| Liquid quality requirements | clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically neutral, close to the characteristics of water |
| Liquid Temperature Range | From 32°F to 104°F |
| Maximum suction depth | 26 ft |
| Maximum ambient temp. | 104°F |
| Maximum operating pressure | 116 psi |
| Installation | fixed or portable in a horizontal position |
| Special version on request | other voltages and/or frequencies |
