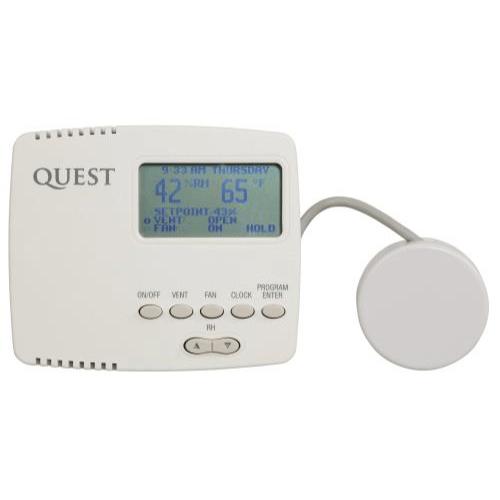

Quest DEH 3000R remote wall mounted digital control for Quest ventilating dehumidifiers. Features fan/filter operation and programmable ventilation timer. It has a large, easy-to-read, backlit LCD display. The DEH 3000R has high temperature cut-out, a dry cycle timer and auto reboot feature.
| Specifications | |
|---|---|
| Electrical | 24 VAC |
Max Current – DMP,COMP,FAN: | 1 Amp each |
| Humidity Operating Range | 10 – 95% |
| Humidity Control Range | 35 – 70% |
| Humidity Accuracy | ± 5% |
| Output | 3 Amps 24 VAC |
Aux. Relay Capacity | 5 Amps |
Temp Range/Accuracy | 30°-90°F, 2% |
| Size | 4.95"L x 1.06"W x 4.19"H |
