Product Highlights
Primary Coverage
Flower- 4' x 4'
Wattage
650 Watts
Diodes
Osram
PPF/Efficiency
1,613 µmol/s / 2.48 umol/j
Amperage
2.7A @ 240v / 2.3A @ 277v
Warranty
5 Years
Frequently Bought Together

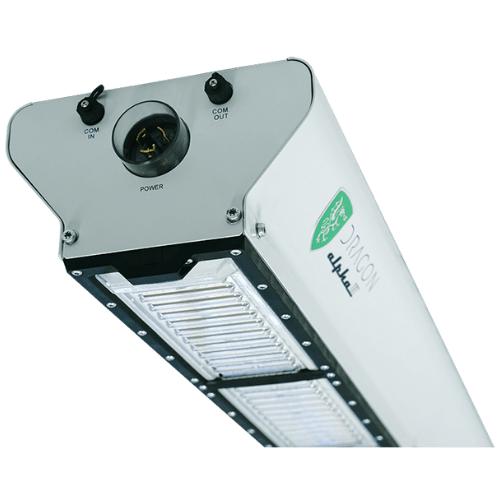

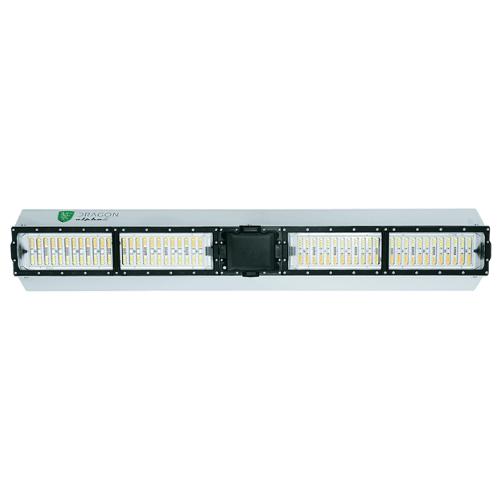

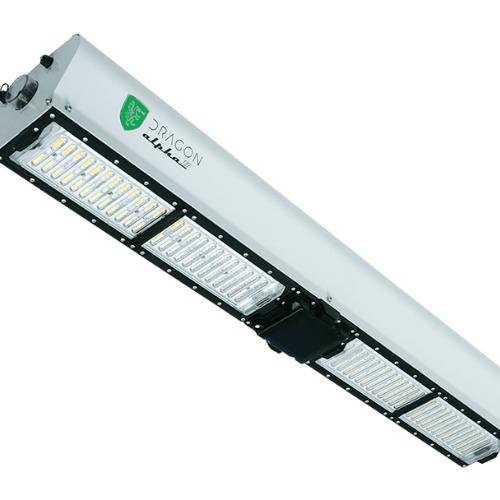

The DRAGON alpha just changed the rules of the game. Never before has a grower had so much control. No matter what crop, style or strain, the alpha can morph into exactly what you need and deliver every single time! A light is nothing more than a tool of the trade. The best tools are able to be mastered and manipulated by the best growers to enhance their craft. The alpha is the choice of craftsmen who need an all-in-one solution for high-output, small footprint, indoor warehouses, highbays or greenhouses.
| Specifications | |
|---|---|
| Power | 650w |
| INPUT VOLTAGE | 120 - 277V or 347 - 480v |
| AMPS | 120v-5.4 / 240v-2.7 / 277v-2.3 / 480v-1.35 |
| POWER FACTOR | >0.95 |
| DIMENSIONS | 44.5” x 8” x 5” |

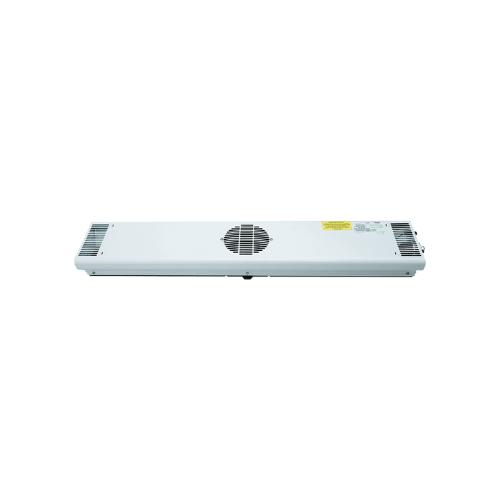

| THERMAL MANAGEMENT | Active - IP67 rated fan |
| WATERPROOF SEALING | IP66 Rating (entire light fixture) |
| CERTIFICATIONS / TESTING | UL, CSA, CE, FCC, RoHS |
| WARRANTY | 5 Years |
| TUNABILITY | 4 color channels with *NEW* full power spectrum tuning |
| SPECTRUM | white (2700k and 6500k) and red (660 and 730nm) |
| SECONDARY OPTICS | Linear 70 (height over canopy is 24” to 72” ) |
| CONTROL | Wireless digital control of spectrum, recipes and scheduling |
| FIXTURE (PPF) | 1,613 µmol/s |
| EFFICACY | 2.48 umol/j |
| PPFD (suggested use) | up to 1,122 µmol/m2/s over a 5’x3.5’ (34 watts/sf) |
| MAX COVERAGE AREA | Flower = 5.5’x4 Veg/Mother = 6’x5’ |
