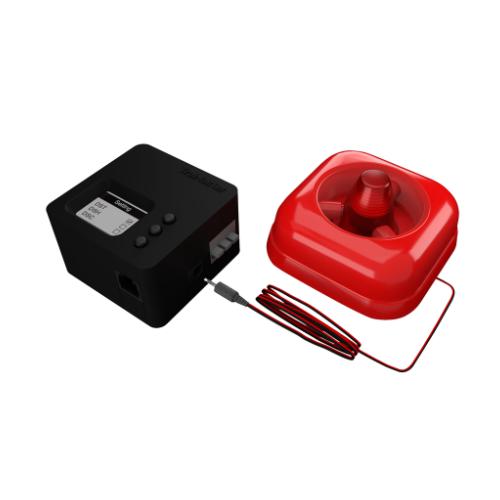

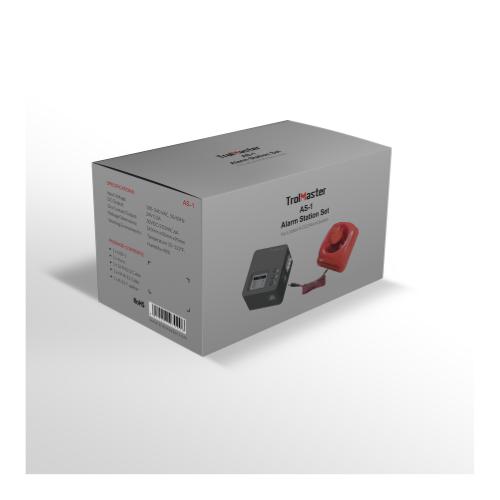

The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When paired with the CBA-1, the AS-5 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors for complete redundancy.
| Specifications | |
|---|---|
| Input Voltage | 100~240 VAC, 50/60Hz |
| Output Current | 24V 0.2A |
| Siren | 85dB |
| Strobe | Red, 120 FPM |
| Dry Contact Output | 30VDC/250VAC,6A |
| Working Environments | Temperature 32-122°F, Humidity<=90% |
| Package Dimensions | 160mm(L) x 80mm(W) x 90mm(H) |
The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When paired with the CBA-1, the AS-5 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors for complete redundancy.
| Specifications | |
|---|---|
| Input Voltage | 100~240 VAC, 50/60Hz |
| Output Current | 24V 0.2A |
| Siren | 85dB |
| Strobe | Red, 120 FPM |
| Dry Contact Output | 30VDC/250VAC,6A |
| Working Environments | Temperature 32-122°F, Humidity<=90% |
| Package Dimensions | 160mm(L) x 80mm(W) x 90mm(H) |
