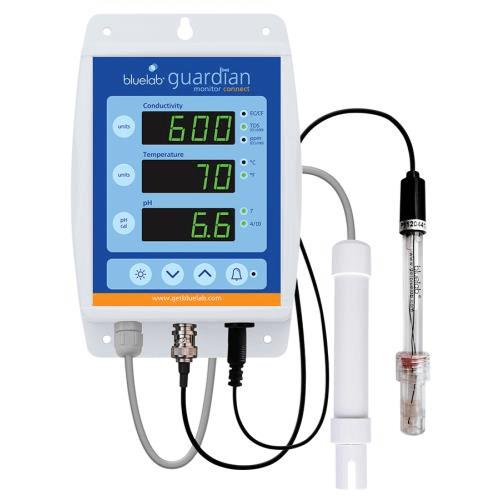

The Bluelab Guardian Monitor Connect In-Line is not only a constant indicator of the desired levels of pH, conductivity and temperature of your nutrient solution, it also data logs these critical parameters to your computer for you. It does not stop there. You can access the data via the cloud from a remote mobile device or computer to check for extreme variances to ensure these critical parameters are hitting the mark for crop success. For remote or cloud access, the computer you are already data logging to will need permanent internet access. It includes simple 1 button calibration for pH 7 and pH 4, personalized alarm settings, high-pressure in-line pH probe with 3/4 ft NPT thread, adapter collar to increase pH probe thread to 1 ft NPT and conductivity probe with 1 ft NPT thread.
Specification | |
---|---|
Measurement
Range | 0.0 – 14.0 pH
|
Resolution | 0.1 pH
|
Accuracy at
25°C/77°F | ±0.1 pH
|
Calibration | Two point
(pH 7.0 and
pH 4.0 or
pH 10.0) |
Automatic
Temperature
Compensation | Yes
(if conductivity/
temperature
probe is in same
solution as pH
probe) |
Operating
Environment | 0 - 50°C / 32 - 122°F
|
Power Source
Input | 100-240 Vac, 50-60 Hz, 5 VA,
4 interchangeable plug types (USA, Euro, UK, NZ/AUS)
Output: 5VDC 1Amp |
Signal Range Indoor / Urban | 66 feet / 20 meters
Outdoor / RF line-of-sight: 164 feet / 50 meters |
System
Requirements | Microsoft Windows XP or greater for Bluelab Connect
Software. Internet connection for remote access & datalogging to the cloud |
