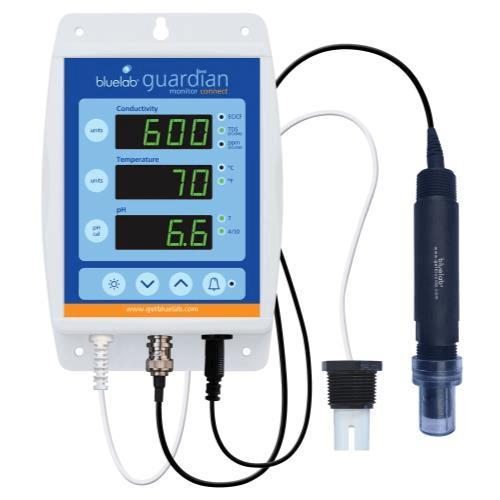

The Bluelab Guardian Monitor Connect In-Line is not only a constant indicator of the desired levels of pH, conductivity and temperature of your nutrient solution, it also data logs these critical parameters to your computer for you. It does not stop there. You can access the data via the cloud from a remote mobile device or computer to check for extreme variances to ensure these critical parameters are hitting the mark for crop success. For remote or cloud access, the computer you are already data logging to will need permanent internet access. It includes simple 1 button calibration for pH 7 and pH 4, personalized alarm settings, high-pressure in-line pH probe with 3/4 ft NPT thread, adapter collar to increase pH probe thread to 1 ft NPT and conductivity probe with 1 ft NPT thread.
Specification | |
---|---|
Measurement Range | 0.0 – 14.0 pH, 0.0 – 5.0 EC, 0 – 50 CF,
0 – 2500 TDS (EC x 500)
0 – 3500 ppm (EC x 700)
0 – 50 ̊C / 32 – 122 ̊F |
Resolution | 0.1 pH, 0.1 EC, 1 CF; 10 TDS, 10 ppm
1 ̊C / 1 ̊F |
Accuracy at 25̊C / 77̊F | ± 0.1 pH, ± 0.1 EC, ± 1 CF; ± 50 TDS, ± 70
ppm; ± 1 ̊C / ± 2 ̊F |
Automatic Temperature
Compensation |
Yes, if conductivity probe is in same
solution as pH probe |
Operating Environment | 0 – 50 ̊C / 32 – 122 ̊F
|
Calibration |
Not required for conductivity or
temperature. pH requires two point, pH 7.0
& pH 4.0 or pH 10.0 calibration |
Power Source | International power supply
|
Signal Range |
Indoor / Urban: Up to 66 feet / 20 meters
Outdoor / RF line-of-sight: Up to164 feet
/ 50 meters |
Frequency Band | 2.4 GHz ISM
|
System Requirements | Microsoft Windows XP or greater Mac os
x 10.7.3 or greater Linux |
Certifications | CE, FCC, IC. Contains Model XBEE2 Radio,
IC: 4214A-XBEE2, FCC ID: OUR-XBEE2 |
Pressure Rating | On the S272 probe is 100psi (about 7 bars).
|
User Manual Languages
Available | English
|
